Detection on all Petri dishes
Scan 4000 automatically detects the peni-cylinders, present or removed, made of steel or plastic. It also reads agar wells or paper disks (any brand). Add/remove disks manually.The inhibition zones can also be resized. Scan 4000 allows reading on blood, chocolate or Mueller Hinton agar. In its automatic colony counter mode, Scan 4000 counts colonies on round or square Petri dishes.

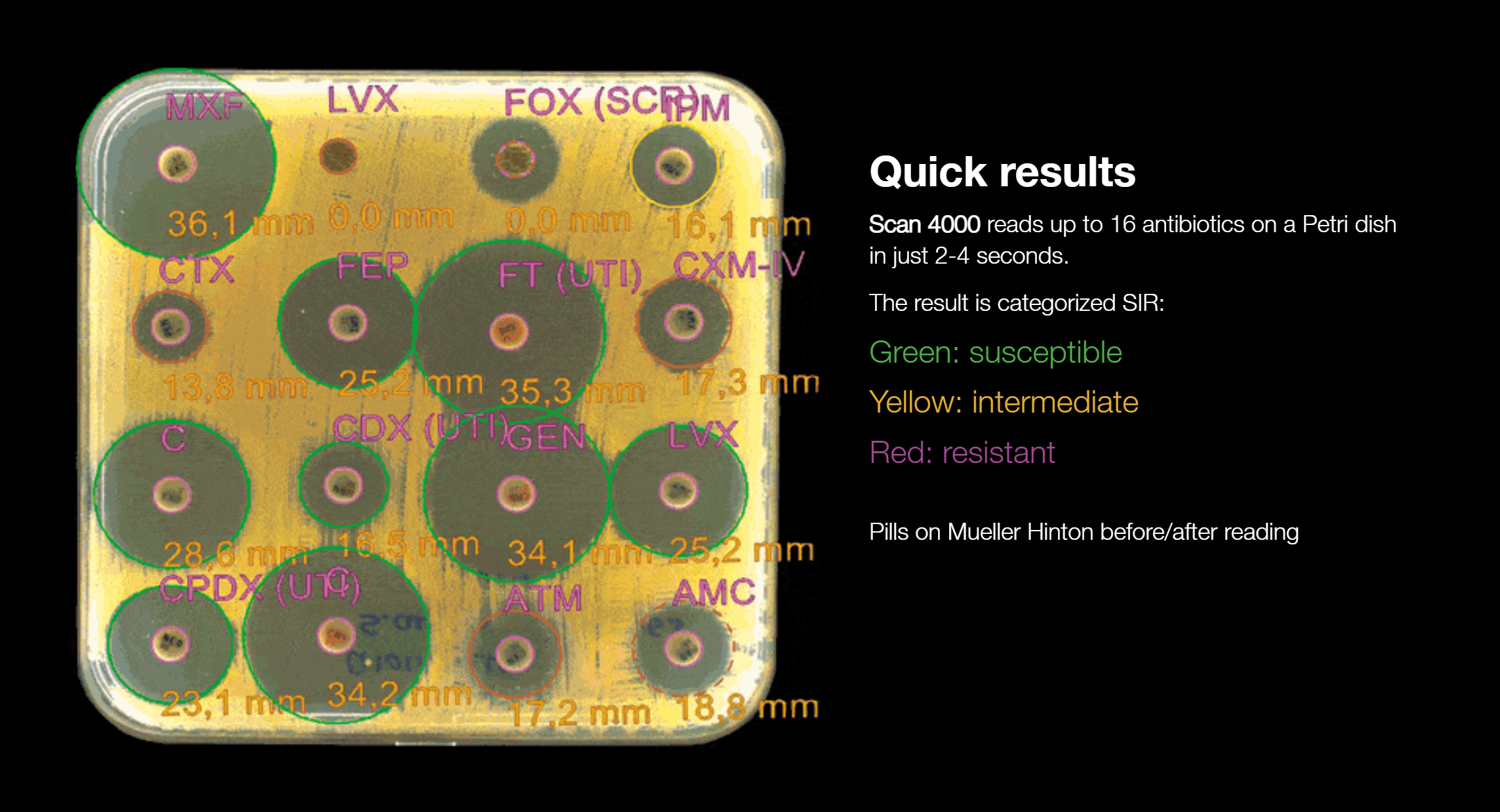

Inhibition zone reading:
21 CFR Part 11 included
The Scan software complies with FDA recommendations, particularly on audit trail and security of results. The user account management, integrated in the software, allows the creation of up to 5 levels of rights. The Supervisor-Administrator has all the roles while the other roles are subject to certain rights. Password management secures user accounts.
1. Data Import
Scan 4000 connects to the LIMS in bi-directionality and can be connected to the diluter and plater via dataLink traceability system.
2. Data Export
Scan 4000 offers multiple export possibilities to save manual input time. It also increases the security and quality of your analyses. Usually, Petri dishes are thrown away after counting and no further verification is possible in the event of a claim. With Scan 4000, all reports are archived. Export your results to your PC or archive them in CSV, ExcelTM, OpenOfficeTM, PDF, SCA, BIO format. You can also export images from the camera in JPEG, PNG and BMP format.
Print of the results
All data, images, photos and results are exportable in printable reports, sca, pdf, jpg, xls, csv.
The Scan software is equipped with a database of antibiotics from the French Society of Microbiology (CA-SFM 2020), the European Committee of Antibiograms (EUCAST 2020), the Clinical and Laboratory Standards Institute (CLSI). This database can be modified by the user.
Scan 4000 Brochure Scan 4000 Inhibition Zone Reader Technical File
Scan 4000 makes it possible to check the effectiveness of an antibiotic on a microorganism by measuring the zone of inhibition. In addition, it adapts to perform titration and/or antibiotic dosage in the pharmaceutical industry. In the field of animal health, the Scan evaluates antimicrobial resistance with its SIR interpretation.
