TRIO.BAS™ AIRBIO MONO Induction

A stationary and portable single aspirating head with Bluetooth capability and battery induction charger

Highlights

1. Useful for customers who make a large number of controls, in different environments an  with a large staff rotation in compliance with quality standards and QM/GMP.
2. Primary applications useful in pharmaceutical asepting filling suites, cleanrooms, biotech, IVF clinics, operating theaters, hospital, pharmacies, blood banks, clinical microbiological labs, HVAC systems monitoring, environmental labs.
3. An optional barcode module, via a scanner (barcode reader) with Bluetooth, automatically records the operator, place and plates used for the sampling. The data collected by the barcode reader is transmitted directly to the instrument. This is useful for those who already use culture plates with barcode or 2-D barcode (QR Quick Response Code).
4.The data can be transferred via Bluetooth from the air sampler to a smartphone or tablet (Android version) and then to a PC or laptop, via required software.

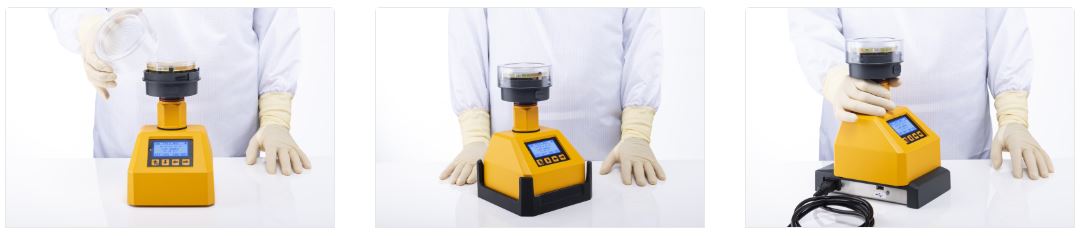

5. The battery is recharged by a base station induction charger without any cable connection between the air sampler and the charger.
6. It is possible to work either in manual or automatic mode.
7. The 200 lts/min air flow reduces the operator and sampling time.
8. The use of optional sterile “Daily Shift” aspirating heads reduces the risk of contamination.
9. Version wh external HEPA filter that allows to retain the particulates is also available.



Performances
  • Technopolymer shockproof body with antibacterial performances of surfaces
  • Compliant according to EN/ISO 14698-1, GMP and GLP
  • Stainless steel aspirating head with quick bayonet closure, identification number and stainless steel cover to prevent contaminations
  • Volume of aspirated air: 100 or 200 lt/m
  • Selected volumes from 30 to 2.000 litres and 17 prefixed programs
  • The aspirating chamber is suitable for 55 mm Contact plate or 90 mm Petri dish
  • Auto calibration: power/flow electronic real time control
  • Battery cycles autonomy: 30.000 litres
  • IP65 protection certificate from dust and water
  • Language: English, French, German, Spanish, Italian
  • Manual and automatic passwords
  • Operative aspirating cycles: manual and automatic
  • Memorized data: up to 1.000 samples
  • Configuration users and places: 100
  • Delayed, remote, start, simultaneous or interval sampling
  • Bluetooth connection or cable for data transfer
  • Automatic next calibration reminder
  • Data integrity CFR 21 and GAMP5
  • CE mark
  • Continuous/trending analysis according to the USP
  • Dimension: 15x15x24h cm
  • Weight: 1.6kgs  (with stainless steel aspiration head mounted)
  • Built in ISO 9001 premises
